锂电池
Lithium Battery

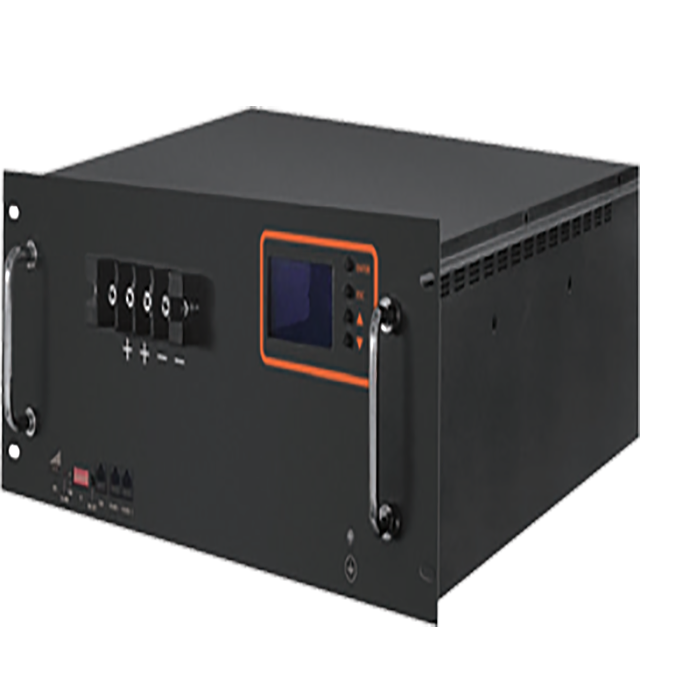

GP48V100AH 磷酸铁锂电池
本产品由高质量的磷酸铁锂电芯（串联和并联）和先进的磷酸铁锂电池组成。磷酸铁锂电池（串联和并联）和先进的BMS管理系统。它可以作为一个 独立的直流电源，也可作为 "基本单元"，组成各种储能锂电池电源。各种储能锂电池电源系统。可靠性高，寿命长。它可以用作通信基站备用电源，数字中心备用电源、家庭能源储能电源、工业储能电源供应等
1.体积小重量轻
2.免维护
3.环保无污染材料，不含重金属，绿色环保
4.标准循环寿命5000次以上
5.准确估算电池组的充电状态，即电池的剩余电量，确保电池组的电量保持在合理范围内
6.内置BMS管理系统，具有完善的保护和监控功能
2.免维护
3.环保无污染材料，不含重金属，绿色环保
4.标准循环寿命5000次以上
5.准确估算电池组的充电状态，即电池的剩余电量，确保电池组的电量保持在合理范围内
6.内置BMS管理系统，具有完善的保护和监控功能
锂电池产品
L I S
产品简介
Product introduction
| Item | Specification | ||||||||||
|
Electrical Characteristics |
Nominal Voltage | 51.2v | |||||||||
| Nominal Capacity | 100ah | ||||||||||
| Energy | 5120Wh | ||||||||||
| Internal Resistance | ≤20mΩ | ||||||||||
| Cycle Life | 6000 Cycles | ||||||||||
| Months Self Discharge | <3% | ||||||||||
| Efficiency of charge | 100% @0.2C | ||||||||||
| Efficiency of Discharge | 96~99% @1C | ||||||||||
| Standard Charge | Charge Cut-off Voltage | 58.4±0.2V | |||||||||
| Charge Mode | 0.2C to 58.4V, then 58.4V,charge current 0.02C(CC/CV) | ||||||||||
| charge Current | 50A | ||||||||||
| Max.charge Current | 75A | ||||||||||
| Charge Cut-off Voltage | 59.2V±0.2V | ||||||||||
| Standard Discharge | Continuous Current | 50A | |||||||||
| Max. Pulse Current | 100A | ||||||||||
| Discharge Cut-off Voltage | 40V | ||||||||||
| Environmenta | Charge Temperature | 0 ℃ to 45 ℃ (32F to 113F) @60 25% Relative Humidity | |||||||||
| Discharge Temperature | -20 ℃ to 60 ℃ (-4F to 140F) @60± 25% Relative Humidity | ||||||||||
| Storage Temperature | 0 ℃ to 40 ℃ (32F to 104F) @60± 25% Relative Humidity | ||||||||||
| Water Dust Resistance | IP30 | ||||||||||
| Mechanical | Cell & Method | 3.2V50AH-16S2P | |||||||||
| Plastic Case | 4U standard case | ||||||||||
| Dimensions (in./mm.) | 482*400*177MM | ||||||||||
| Weight (lbs./kg.) | 43Kg | ||||||||||
|
Terminal |
100A through terminal | ||||||||||
| Protocol (optional) | RS485/RS232CAN | ||||||||||
| BMS | 16S100A | ||||||||||
