立式蒸汽灭菌器

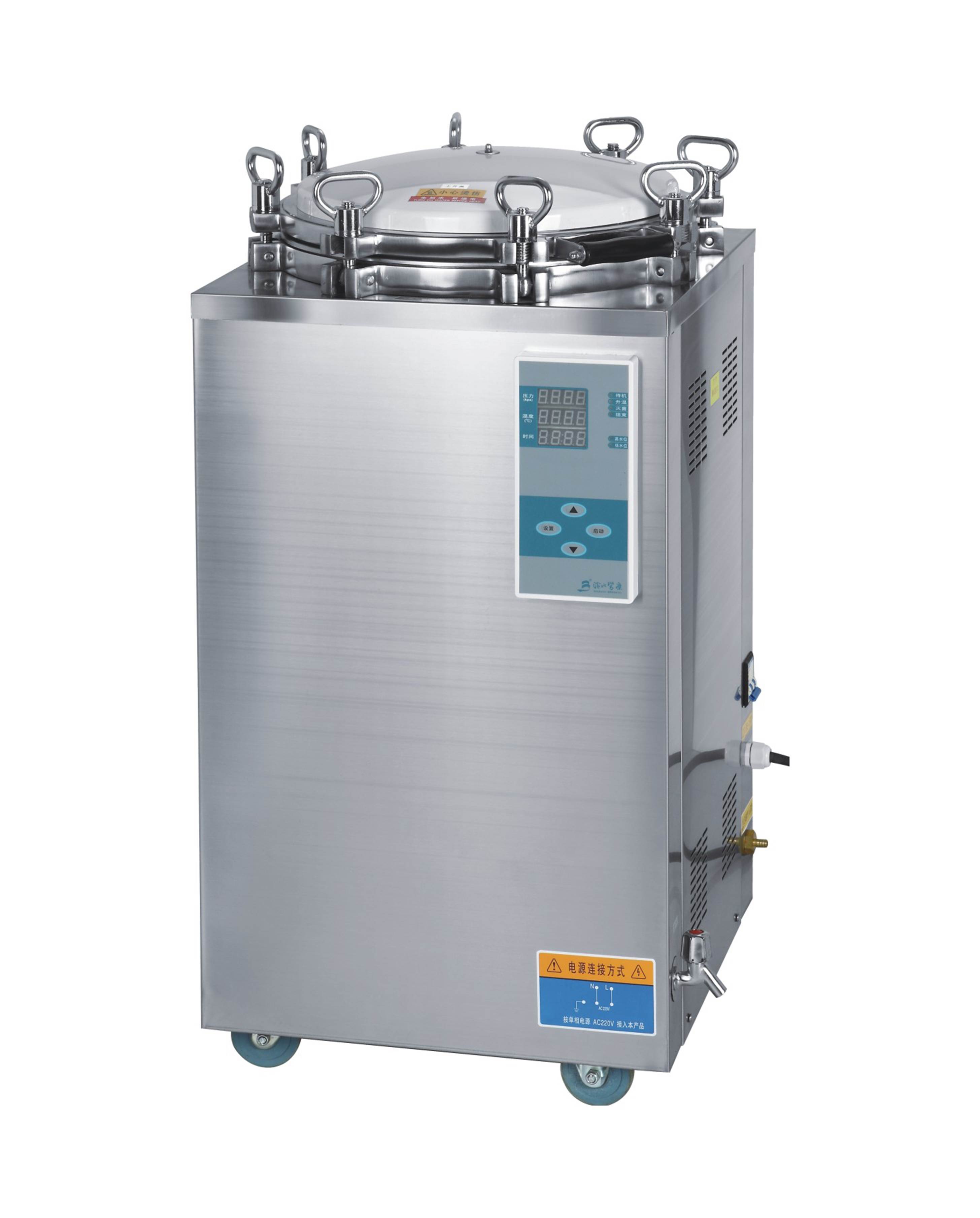

Vertical Steam Sterilizer
产品简介
Product introduction
| Parameter | LS-35LD (Automatic) | LS-50LD (Automatic) | LS-75LD (Automatic) | LS-100LD (Automatic) |
| Capacity | 35L (φ318×450mm) | 50L (φ340×550mm) | 75L (φ400×600mm) | 100L (φ440×650mm) |
| Max Working Pressure | 0.23 MPa | 0.23 MPa | 0.23 MPa | 0.23 MPa |
| Temperature | 134°C | 134°C | 134°C | 134°C |
| Heat Uniformity | ≤1°C | ≤1°C | ≤1°C | ≤1°C |
| Timer Range | 0–99min or 0–99h59min | 0–99min or 0–99h59min | 0–99min or 0–99h59min | 0–99min or 0–99h59min |
| Temp Adjustment | 105–134°C | 105–134°C | 105–134°C | 105–134°C |
| Power | 2.5kW / AC220V, 50Hz | 3kW / AC220V, 50Hz | 4.5kW / AC220V, 50Hz | 4.5kW / AC220V, 50Hz |
| Overall Dimensions | 480×460×850mm | 520×520×980mm | 560×560×980mm | 590×590×1080mm |
| Transport Dimensions | 570×550×970mm | 590×590×1110mm | 550×630×1150mm | 680×650×1220mm |
| Weight (G.W/N.W) | 56kg / 42kg | 68kg / 50kg | 90kg / 70kg | 105kg / 85kg |
