立式蒸汽灭菌器

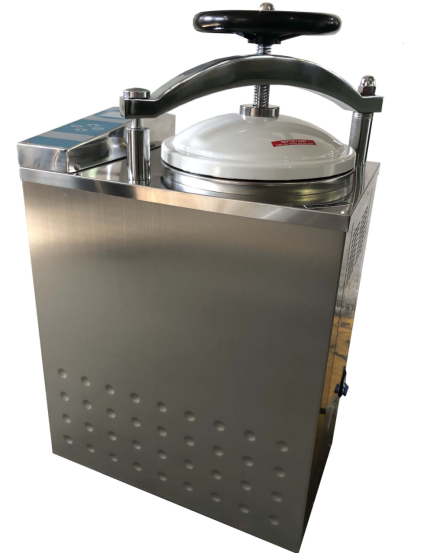

Vertical Steam Sterilizer
产品简介
Product introduction
| Model technical data | LS-35HG | LS-50HG | LS-75HG | LS-100HG |
| Chamber volume | 35L(φ318×450)mm | 50L(φ340×550)mm | 75L(φ400×600)mm | 100L(φ440×650)mm |
| working pressure | 0.22MPa | |||
| Working temperature | 134℃ | |||
| Max working pressure | 0.23 Mpa | |||
| Heat average | ≤±1℃ | |||
| Timer | 0～99min or 0～99hour59 min | |||
| Adjustment of temperature | 0～134℃ | |||
| Power | 2.5KW/AC220V.50Hz | 3KW /AC220V.50Hz | 4.5KW /AC220V.50Hz | |
| Overall dimension | 600×410×1030(mm) | 650×410×1140(mm) | 690×470×1140(mm) | 730×510×1270(mm) |
| Transport dimension | 730×500×1170(mm) | 730×500×1290(mm) | 760×550×1290(mm) | 820×600×1380(mm) |
| G.W/N.W | 96Kg/ 77Kg | 102Kg/ 83Kg | 120Kg/98Kg | 135/110Kg |
