立式蒸汽灭菌器

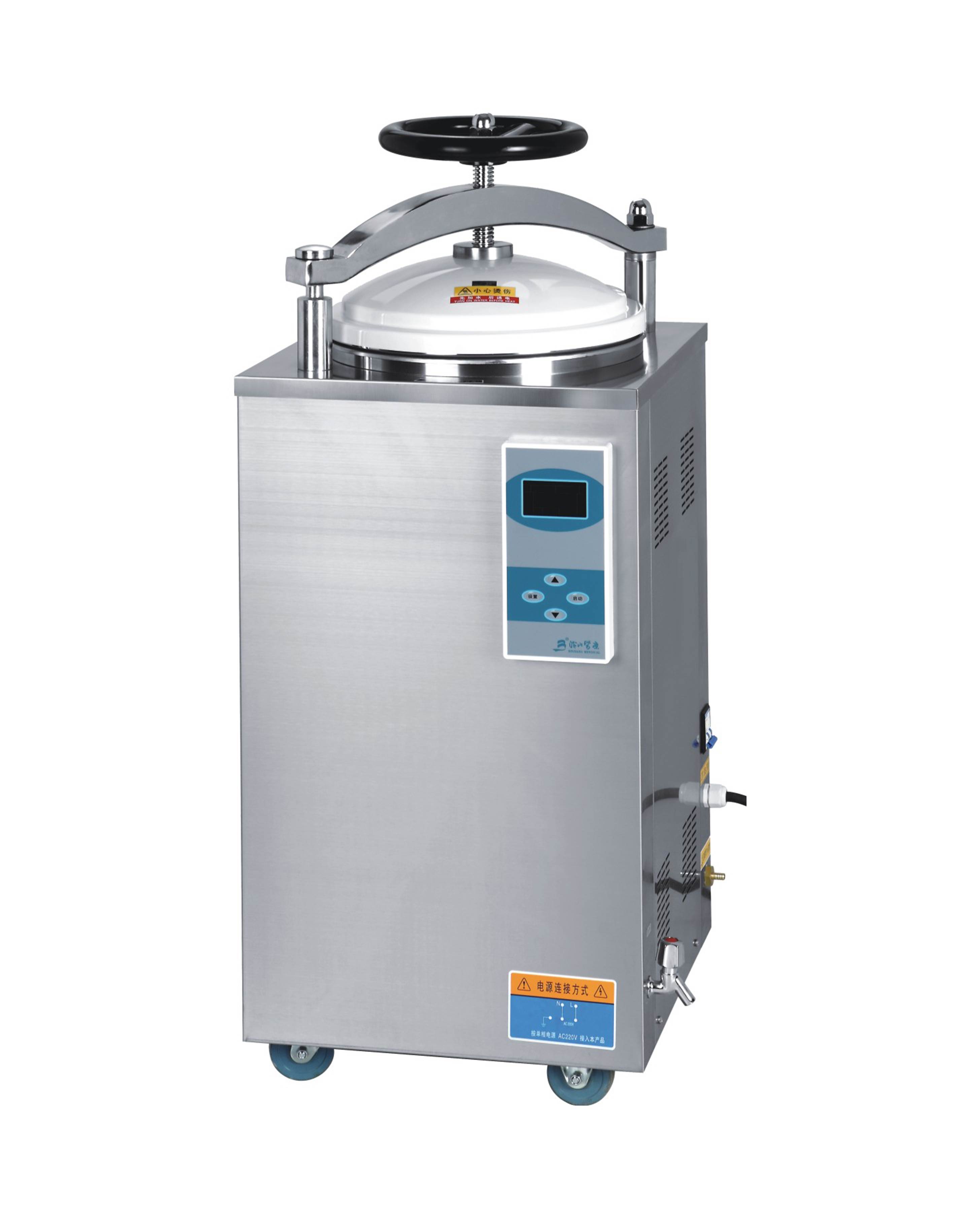

Vertical Steam Sterilizer
产品简介
Product introduction
| Model technical data | LS-35HD(automatic) | LS-50HDI(automatic) | LS-75HD(automatic) | LS-100HD(automatic) |
| Chamber volume | 35L(φ318×450)mm | 50L(φ340×550) mm | 75L(φ400×600) mm | 100L(φ440×650) mm |
| working pressure | 0.22MPa | |||
| Working temperature | 134℃ | |||
| Max working pressure | 0.23 Mpa | |||
| Heat average | ≤±1℃ | |||
| Timer | 0～99minor 0～99hour59min | |||
| Adjustment of temperature | 105～134℃ | |||
| Power | 2.5Kw/AC220V.50Hz | 3Kw/AC220V.50Hz | 4.5Kw/AC220V.50Hz | |
| Overall dimension | 450×450×1010(mm) | 510×470×1130(mm) | 560×560×1120 (mm) | 540×560×1250 (mm) |
| Transport dimension | 570×550×1150(mm) | 590×590×1280(mm) | 650×630×1280(mm) | 680×630×1370(mm) |
| G.W/N.W | 72Kg/56Kg | 88Kg/ 68Kg | 100Kg/ 80Kg | 110Kg/ 85Kg |
