兽用血液分析仪
Animal Hematology Analyzer

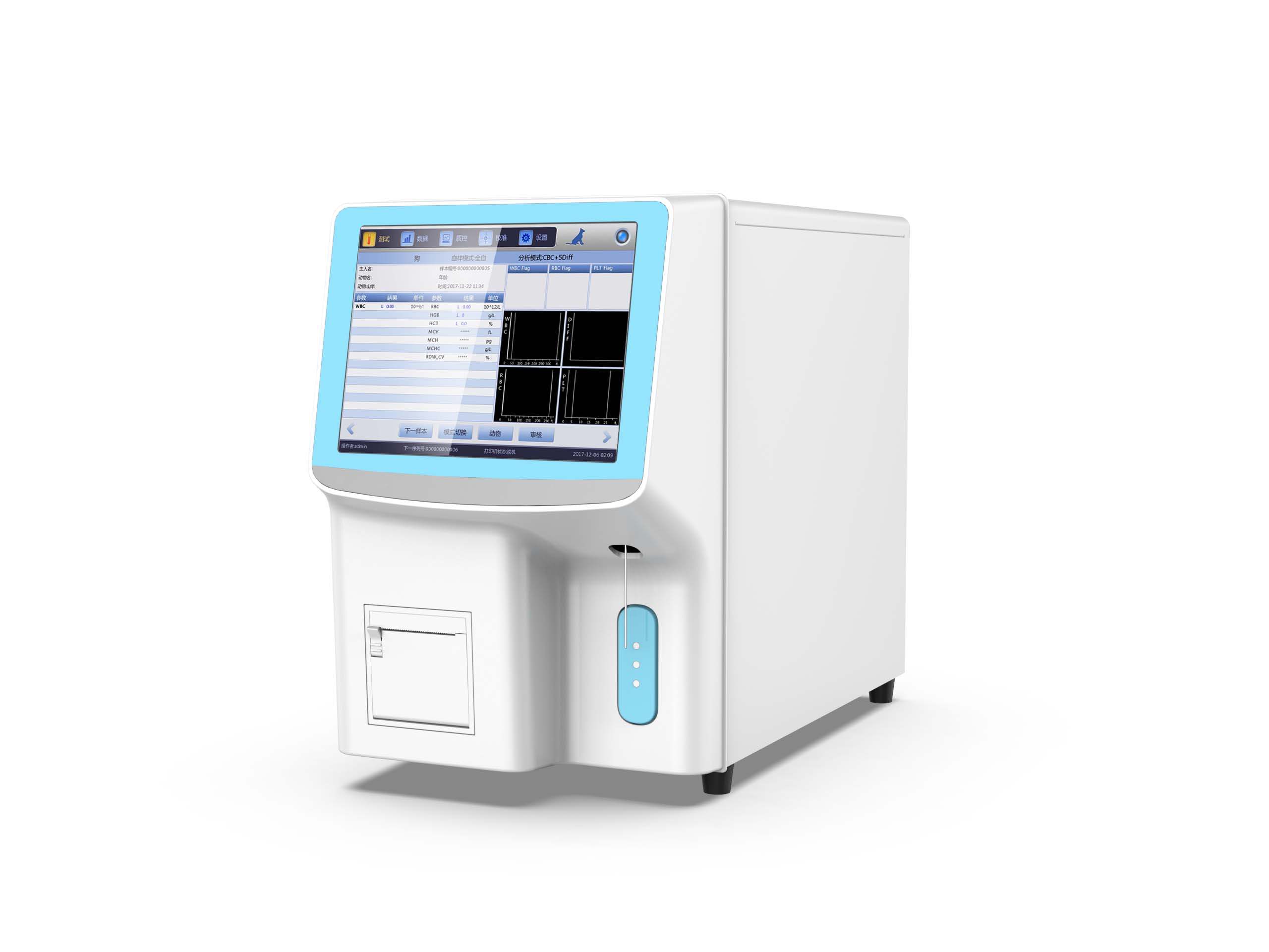

MT-5190Vet 兽用血液分析仪
-
Dual Detection Modes - Switch between 3-part (CBC+3DIFF) and 5-part (CBC+5DIFF) classification to suit different diagnostic needs
-
High Efficiency - Maximum testing speed of ~60 tests/hour with ≥200,000 result storage capacity
-
Versatile Sampling - Supports whole blood (≤15μL for 5DIFF) and pre-diluted (≤20μL) modes for special pet testing
-
Animal-Specific Optimization - Custom detection modes for 16+ animal species with reference ranges (cats, dogs, horses, etc.)
-
Eco-Friendly Design - Cyanide-free HGB testing (540nm LED) reduces environmental impact
-
Smart Maintenance - Automatic cleaning alerts and one-touch troubleshooting
-
Compact & Reliable - Classic compact design (508×270×412mm) with precise stepper motor sampling
兽用血液分析仪产品
产品简介
Product introduction
| Category | Specification |
| Analysis Modes | CBC+3DIFF (3-part), CBC+5DIFF (5-part) |
| Sample Volume | Whole blood: ≤15μL (5DIFF), ≤10μL (3DIFF); Pre-diluted: ≤20μL |
| Throughput | ~60 tests/hour |
| Storage | ≥200,000 results (with graphs) |
| Display | 10.4" LCD with Chinese UI (supports USB updates) |
| HGB Method | Cyanide-free photometry (540nm LED) |
| Technology | Multi-angle laser scattering + Electrical impedance |
| QC/Calibration | 4 QC modes (L-J/X-B/X-R/X) + Auto/Manual calibration |
| Species Support | 16 preset animals (cat/dog/horse/cow etc.) + customizable references |
| Printer | Built-in thermal printer + external printer option (Chinese/English reports) |
| Dimensions | 508×270×412mm (L×W×H) |
| Weight | 35kg |
| Power | 250VA, Fuse: 250V/3.15A |
