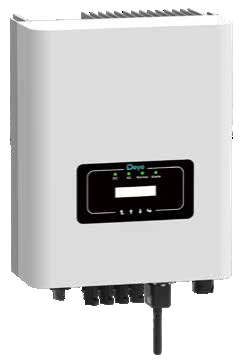

SUN-7/7.5/8/9/10K-G Deye On Grid Inverter 7KW 8KW 9KW 10KW Single Phase String Inverter
Deye Inverters
Product Feature
Product Introduction
Deye Single Phase String Inverter(LV)
- 7/7.5/8/9/10/10.5KW
- On Grid
- Single Phase
- 2 MPPT
Single Phase String Power Inverter can convert solar panel DC power into AC power which candirectly input to the grid.
Input Side:
Model
SUN-7K-G
SUN-7.5K-G
SUN-8K-G
SUN-9K-G
SUN-10K-G
SUN-10.5K-G
Input Side
Max. DC Input Power(kW)
9.1
9.8
10.4
11.7
13
13.7
Max. DC Input Voltage (V)
550
Start-up DC Input Voltage(V)
80
MPPT Operating Range(V)
70~550
Max. DC Input Current(A)
13+26
26+26
Max. Short Circuit Current (A)
19.5+39
39+39
Number of MPPT/Strings per MPPT
2/1+2
2 / 2+2
Output Side
Rated Output Power(kW)
7
7.5
8
9
10
10.5
Max. Active Power(kW)
7.7
8.25
8.8
9.9
11
11.55
Nominal Output Voltage / Range (V)
L/N/PE 220V/187V-242V, 230V/ 195.5V-253V (Optional)
Rated Grid Frequency(Hz)
50 / 60 (Optional)
Operating Phase
Single phase
Rated AC Grid Output Current(A)
30.4
32.6
34.8
39.1
43.5
45.7
Max. AC Output Current(A)
33.5
35.9
38.3
43
47.8
50.2
Output Power Factor
0.8 leading to 0.8 lagging
Grid Current THD
<3%
DC Injection Current(mA)
<0.5%
Grid Frequency Range
47~52 or 57~62 (Optional)
Efficiency
Max.Efficiency
97.7%
Euro Efficiency
97.5%
MPPT Efficiency
>99%
