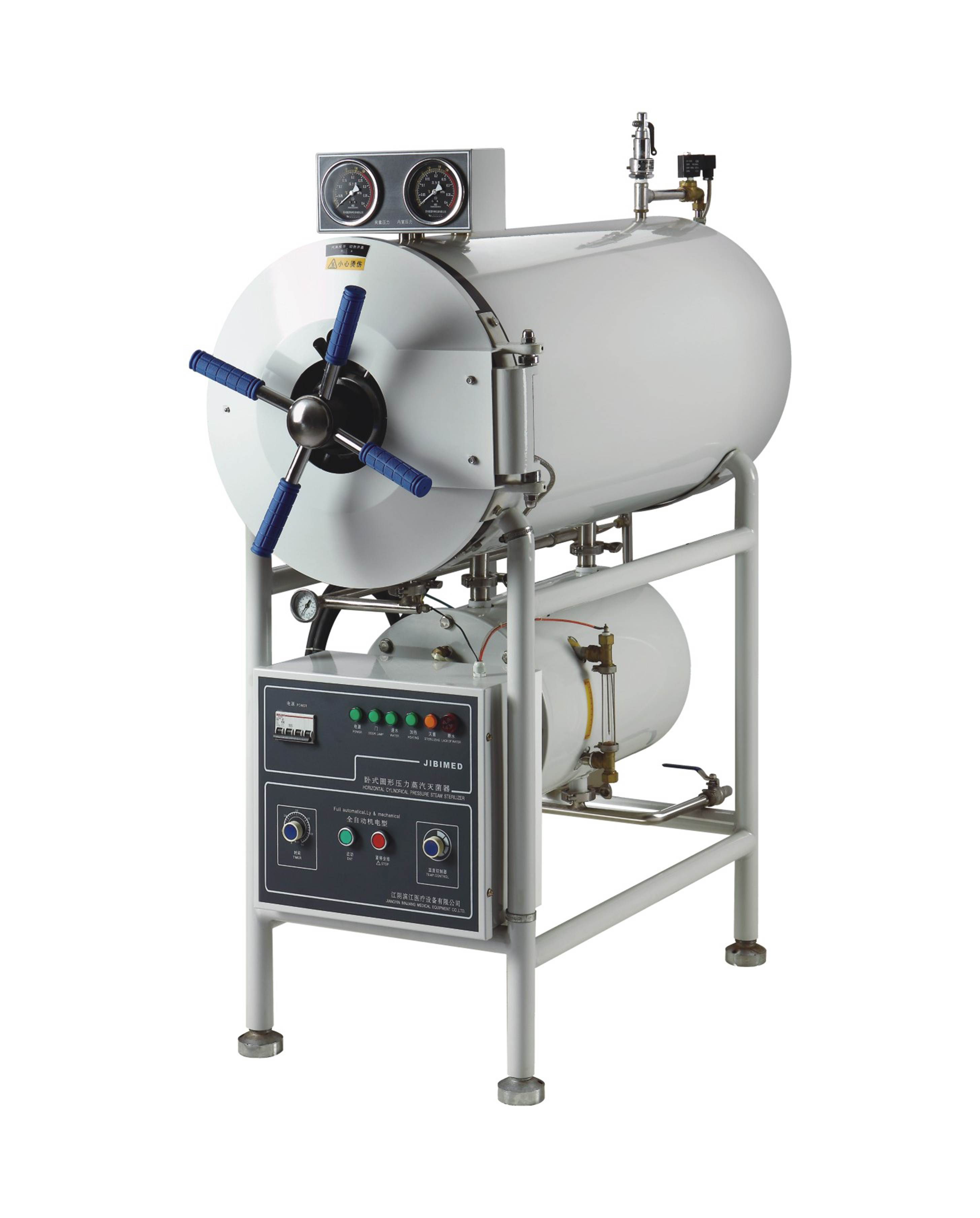

MTWS-YDA Horizontal cylindrical pressure steam sterilizer
Industrial-grade sterilization system with smart automation. Stainless steel construction and advanced safety controls ensure reliable performance for medical, lab, and industrial use.
-
Fully-automated cycles with computerized control
-
Integrated drying system for post-sterilization dressing prep
-
Triple safety protection: Over-temperature/pressure auto-shutdown
-
Pressure-locked door (opens only at ≤0.027MPa) + door seal detection
-
Emergency pressure release: 0.24MPa auto-vent to water tank
-
Auto water monitoring: Power/water cutoff + audible alarm
-
Medical-grade 316L stainless steel chamber
Lithium Battery
L I S
Product Introduction
| Technical data | WS-150YDA | WS-200YDA | WS-280YDA | WS-400YDA | WS-500YDA |
| Sterilizing chamber volume | 150L | 200L | 280L | 400L | 500L |
| φ440×1000mm | φ515×1000mm | φ600×1000mm | Φ700×1100mm | Φ700×1300mm | |
| working pressure | 0.22MPa | ||||
| working temperature | 134℃ | ||||
| Adjustment of temperature | 105℃ - 134℃ | ||||
| Time of sterilization | 0-60 min | ||||
| Time of drying | 0-60 min | ||||
| Heat average | ≤±2℃ | ||||
| Power | 9KW/380V 50Hz | 9KW/380V 50Hz | 12KW/380V 50Hz | 18KW/380V 50Hz | 18KW/380V 50Hz |
| Dimension | 1400×600×1300 | 1400×670×1650 | 1400×770×1780 | 1430×880×1830 | 1800×900×1820 |
| Transport dimension | 1550×750×1850 | 1560×820×1850 | 1680×920×2100 | 1600×1050×2100 | 1850×1050×2100 |
| G.W/N.W | 320/240 KG | 350/260 KG | 465/365 KG | 530/420 KG | 580/470 KG |
