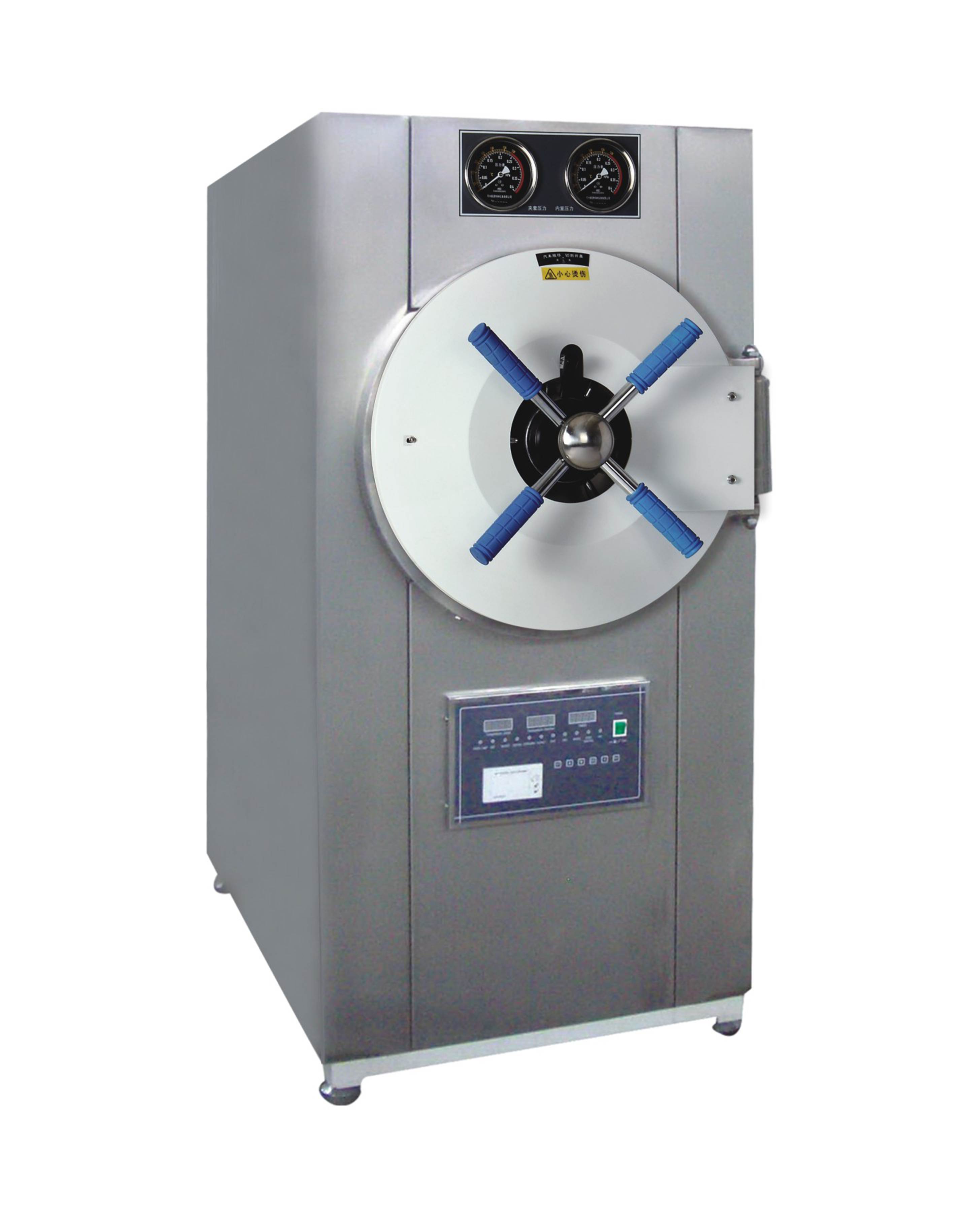

MTWS-YDD Horizontal cylindrical pressure steam sterilizer
Industrial-grade sterilization system with smart automation. Stainless steel construction and advanced safety controls ensure reliable performance for medical, lab, and industrial use.
-
Computer-controlled automatic sterilization cycles
-
Integrated drying for post-sterilization preparation
-
Dual safety protection: Over-temp/pressure auto-shutdown
-
Pressure-locked door (opens only at ≤0.027MPa)
-
0.24MPa safety valve auto-vents steam to water tank
-
Auto water protection: Cuts power/water + alarm
-
Medical-grade 316L stainless steel chamber
-
Built-in thermal printer for documentation
Lithium Battery
L I S
Product Introduction
| Technical data | WS-150YDD | WS-200YDD | WS-280YDD |
| Sterilizing chamber | 150L | 200L | 280L |
| volume | φ440×1000mm | φ515×1000mm | φ600×1000mm |
| working pressure | 0.22 MPa | ||
| working temperature | 134℃ | ||
| Adjustment of temperature | 40℃ - 134℃ | ||
| Time of sterilization | 0-99 min | ||
| Time of drying | 0-99 min | ||
| Heat average | ≤± 2℃ | ||
| Power | 9KW/380V 50Hz | 9KW/380V 50Hz | 12KW/380V 50Hz |
| Dimension | 1400×650×1600 | 1400×750×1700 | 1520×910×1900 |
| Transport dimension | 1560×820×1820 | 1560×910×1880 | 1680×1080×2100 |
| G.W/N.W | 430/340 KG | 436/350 KG | 570/462 KG |
