Animal Hematology Analyzer

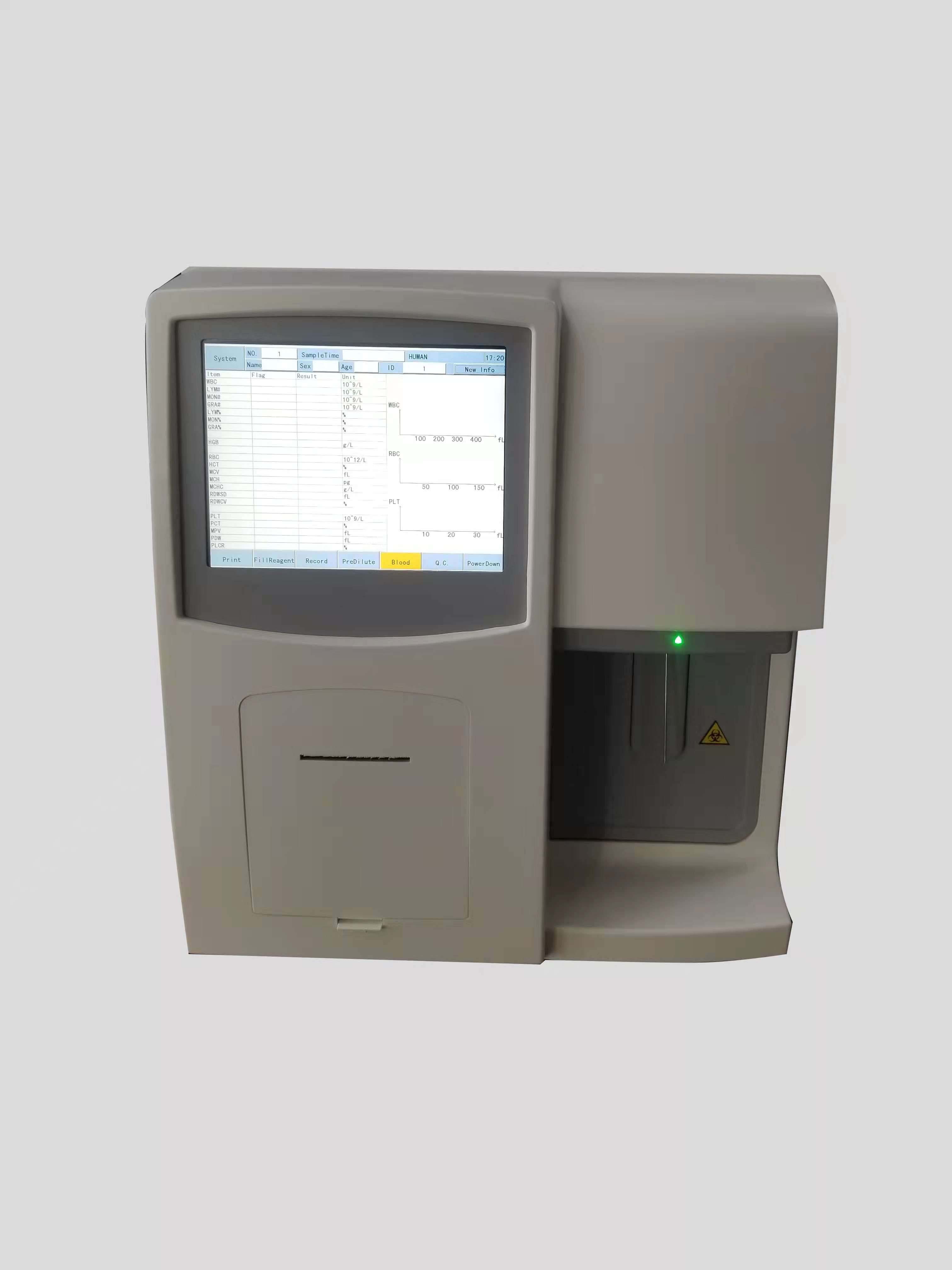

MT-830 Animal Hematology Analyzer
Blood analyzers provide fast, accurate testing for animal and medical diagnostics, measuring WBC, RBC, HGB, and more. Ideal for clinics, labs, and research.
-
23 Parameters & 3-Part Differential – Measures RBC, WBC, PLT, and 20+ sub-parameters with dual-channel accuracy.
-
Auto-Dilution & Low Clogging – Automatic sample dilution and self-cleaning to reduce blockages.
-
Eco-Friendly Reagents – Uses non-oxide lysing agents (safe for labs and environment).
-
Dual Testing Modes – Supports whole blood (9.7µL) and pre-diluted (20µL) samples.
-
Intuitive Chinese Interface – Simplified operation with auto-error alerts and prompts.
-
Built-in Thermal Printer – Generates A5 reports (optional external printer).
-
QC Management – Multi-level controls with auto-calibration and anomaly alerts.
Animal Hematology Analyzer
L I S
Product Introduction
| Parameter | Specification |
| Measurement Method | RBC/PLT: Impedance; HGB: 546nm Photometry |
| Test Parameters | 23 (RBC, WBC, PLT, HGB, MCV, RDW, etc.) + 3 histograms |
| Sample Volume | Whole blood: 9.7µL; Pre-diluted: 20µL |
| Dilution Ratio | WBC/HGB: 1/400; RBC/PLT: 1/40,000 |
| Throughput | ~60 samples/hour |
| Linear Range | RBC: 1.00–9.90×10¹²/L; WBC: 0.5–99.0×10⁹/L |
| Precision (CV%) | RBC/WBC/HGB ≤2%; PLT ≤4%; MCV ≤1% |
| Storage Capacity | >1,000 results with auto-calibration |
| Printer | Built-in thermal (A5) + external printer option |
| Dimensions | 330×420×400mm (L×W×H) |
