Hematology Analyzer

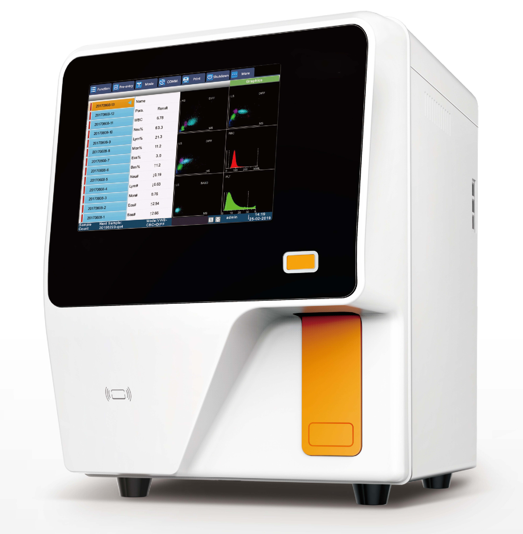

MT-7100 Hematology Analyzer
Blood analyzers provide fast, accurate testing for animal and medical diagnostics, measuring WBC, RBC, HGB, and more. Ideal for clinics, labs, and research.
-
Advanced Digital Detection - Combines laser flow cytometry + impedance + colorimetry
-
High-Efficiency Processing - 60 tests/hour with ≤20μL sample volume (venous/capillary/pre-diluted)
-
Comprehensive Parameters - 30 parameters + 4 scatter plots + 3 histograms
-
Smart Quality Control - Auto-calibration with L-J & X-B QC modes
-
User-Centric Design - 10.4" touchscreen with LIS connectivity and permission management
-
Reliable Performance - Constant-temperature reagent system + anti-interference electronics
-
Low Maintenance - Automated cleaning and self-diagnostic alerts
Hematology Analyzer
L I S
Product Introduction
| Category | Specification |
| Technology | WBC: Laser flow cytometry |
| RBC/PLT: Impedance | |
| HGB: 546nm colorimetry | |
| Throughput | 60 tests/hour |
| Sample Volume | ≤20μL (venous/capillary/pre-diluted) |
| Test Modes | CBC+DIFF / CBC-only |
| Parameters | 30 (including Neu#, Lym#, RDW-SD, PDW) + 4 scatters + 3 histograms |
| Calibration | Auto & manual |
| QC | L-J, X-B multi-rules |
| Display | 10.4" color touchscreen with soft keyboard |
| Connectivity | LIS/HIS, USB, barcode scanner |
| Storage | 50,000 results (with graphs) |
| Dimensions | 364×498×431mm (L×W×H) |
| Weight | 26.5kg |
| Power | 100-240V AC, 50/60Hz |
