Hematology Analyzer

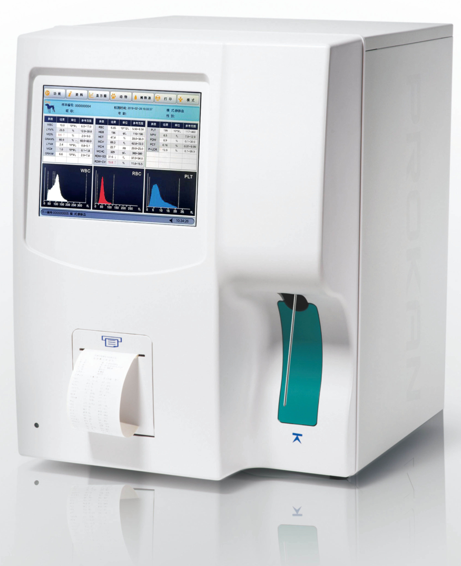

MT-6800 Hematology Analyzer
Blood analyzers provide fast, accurate testing for animal and medical diagnostics, measuring WBC, RBC, HGB, and more. Ideal for clinics, labs, and research.
-
Efficient 3-Part Analysis - 23 parameters with WBC 2-part differential
-
Versatile Sampling - Supports venous (8.6μL), capillary (8.6μL), and enriched (50μL) blood
-
Continuous Operation - 24-hour standby with auto-sleep mode
-
Precision Measurement - Independent HGB system + single-passage counting technology
-
Smart QC - L-J multi-rule QC with 30-day histogram storage
-
User-Friendly - Touchscreen (PE-6300Plus) + USB keyboard/mouse support
-
Compact Connectivity - 4 USB ports + VGA output for external monitor
Hematology Analyzer
L I S
Product Introduction
| Classification | 3-part (WBC 2-diff) |
| Parameters | 23 (including VWBC/RBC/PLT indices) |
| Sample Volume | Venous/Capillary: 8.6μL; Enriched: 50μL |
| Throughput | ≥50 samples/hour |
| Technology | Single-passage counting + independent HGB photometry |
| QC | L-J rules with 30-day histogram storage |
| Precision (CV%) | WBC ≤2% • HGB ≤1.2% • PLT ≤5% • MCV ≤0.4% |
| Display | Touchscreen (400×450 resolution) |
| Connectivity | USB×4 + VGA + RS232 |
| Printer | Built-in thermal + external laser/inkjet (5 report formats) |
| Power | AC 100-240V, 50/60Hz |
| Dimensions | 400×450×350mm (L×W×H) |
