Portable Electrolyte Analyzer

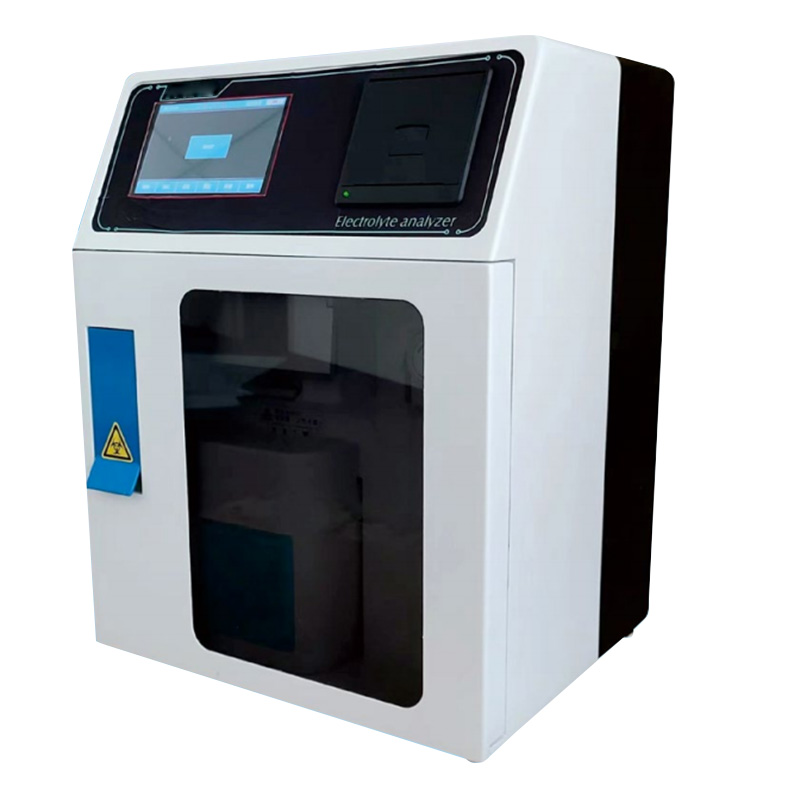

MT-X3 Portable Electrolyte Analyzer
A high-precision electrolyte analyzer using ISE technology for rapid (25s) measurement of K⁺/Na⁺/Cl⁻/Ca²⁺/pH/Li⁺ in blood, urine, and CSF. Ideal for critical care and veterinary use.
-
Multi-Parameter - 6 parameters (DN-X6 model: K⁺/Na⁺/Cl⁻/Ca²⁺/pH/Li⁺)
-
Rapid Results - ≤25 seconds with <100μL sample
-
ISE Technology - Long-life electrodes with <3% accuracy deviation
-
Closed Reagent - Real-time volume monitoring, standby mode reduces waste
-
High Throughput - 10,000 result storage with barcode support
-
Wide Compatibility - Serum/plasma/whole blood/CSF/urine
-
Compact Design - Only 7.5kg (420×320×280mm)
Portable Electrolyte Analyzer
L I S
Product Introduction
| Models | DN-X3 (K/Na/Cl), DN-X4 (+Li), DN-X5 (+Ca/pH), DN-X6 (Full 6-parameter) |
| Technology | Ion Selective Electrode (ISE) |
| Sample Volume | <100μL |
| Measurement Time | ≤25 seconds |
| Accuracy | K/Na/Cl: <3% R; Ca/Li: <5% R |
| Precision | CV <1% (K/Na/Cl/Ca/Li) |
| Storage | 10,000 results |
| Connectivity | RS232-C + barcode reader |
| Dimensions | 420×320×280mm |
| Weight | 7.5kg |
| Power | AC220V±22V, 50Hz±1Hz |
