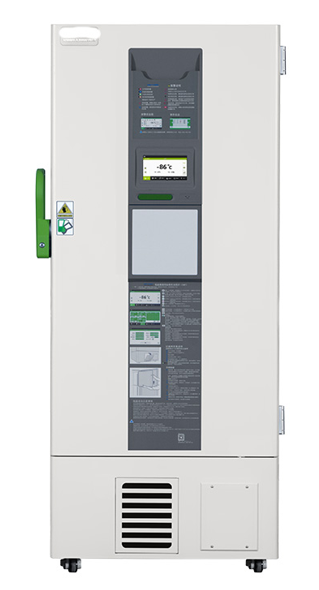

MTF-86V408 -86℃ ULT Freezer
Designed for storing samples, reagents, and biological materials with precise temperature control—ideal for medical, research, and pharmaceutical use.
-
Cascade Cooling System: Industry-proven -86℃ refrigeration technology
-
High-Capacity Storage: 19,200-60,000 samples (330-838L options)
-
Smart Monitoring:
-
7" touch screen with real-time data display
-
USB/RS485 interfaces for data export
-
-
Advanced Insulation: Multi-layer independent spaces minimize heat loss
-
Safety Systems:
-
Air pressure balance valve
-
Door-open alarms & temperature deviation alerts
-
Lab Refrigerators
L I S
Product Introduction
| Category | MTF-86V408 Specification |
| Temperature Range | -40℃ to -86℃ (settable) |
| Capacity Options | 330L / 588L / 738L / 838L |
| Sample Storage | Up to 60,000 x 2mL tubes |
| Cooling System | Cascade refrigeration |
| Compressors | SECOP x 2 |
| Power Supply | AC220V 50Hz, 8.23A |
| Daily Consumption | 12.43kWh/24h |
| Alarms | 10 types (temp/power/door/etc.) |
| Certifications | ISO9001, ISO13485, CE |
