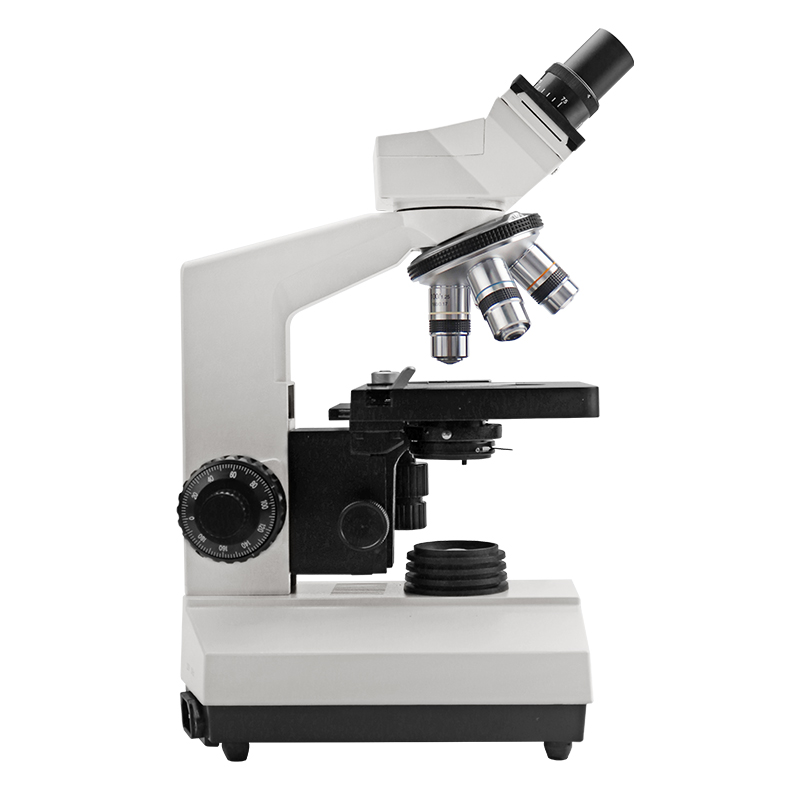

MT-107BN Microscope
Our microscope range covers a wide spectrum from basic monocular microscopes to advanced trinocular research models, suitable for education, medical labs, and industrial inspection.
45mm DIN achromatic objectives: 4X, 10X, 40X (S)
Wide field WF10X eyepiece
Total magnification: 40X–1600X
Sliding binocular head, 45° inclined, 360° rotatable
Coaxial focusing, mechanical stage (142×132mm)
Adjustable halogen illumination (6V/20W)
Wide field WF10X eyepiece
Total magnification: 40X–1600X
Sliding binocular head, 45° inclined, 360° rotatable
Coaxial focusing, mechanical stage (142×132mm)
Adjustable halogen illumination (6V/20W)
Microscopes
L I S
Product Introduction
| Spec Item | Details |
| Magnification Range | 40X–1600X / 40X–500X / 40X–400X / 7X–45X (depending on model) |
| Eyepiece | WF10X / WF16X / 12.5X (model-dependent) |
| Objectives | DIN Achromatic: 4X, 10X, 40X(S), 100X(Oil) |
| Head Type | Monocular / Binocular / Sliding Binocular / 360° rotatable |
| Stage Size | 142×132mm / 110×120mm |
| Focusing Mechanism | Coaxial coarse & fine adjustment / 50mm range / 1.8–2.2mm fine tuning |
| Condenser & Diaphragm | N.A. 1.25 Abbe condenser, Iris diaphragm or five-stop diaphragm |
| Illumination | Halogen lamp 6V/20W / LED / Incandescent / Concave-Plano Mirror |
| Working Distance | 100mm (Zoom model only) |
| Interpupillary Distance | 54–75mm (Binocular models only) |
| Diopter Adjustment | ±5mm (Zoom model only) |
